Y axis travel: 400mm
Z axis travel: 330mm
Spindle nose to work surface: 150~480mm
Worktable size: 650*400mm
Worktable Height (from Ground): 800mm
Spindle Speed Range: 12,000rpm (Power:5.5kw)
Tool System: BT-30, upgrade to 21 tools
High-Speed Tool change Upgrade
Tri-Color Warning Light
Net Weight of the Machine: 2800kg

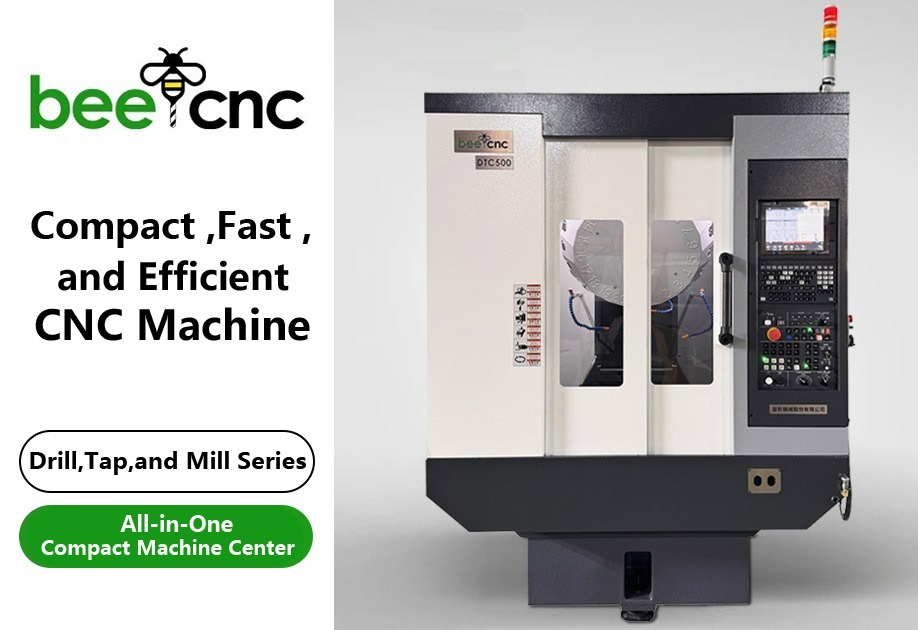

High-Precision CNC Machines for Large-Batch Production
Compact machine center with 40 years of expertise, trusted by loyal clients and backed by international certifications. Perfect for drilling, tapping, and milling. Ideal as a tapping machine center for efficient, large-batch production.
Boosting Efficiency with Compact CNC Machines
Better CNC machining centers or compact machine tools: Faster, more stable, and energy-efficient with a lighter weight design.
6 Major Advantages
Our CNC machines focus on production efficiency, optimizing speed and quality from the very beginning. Choose BEECNC for a seamless, cost-effective manufacturing process that truly maximizes your results.
1.Space Savings : 60% more compact than former model.
2.Energy Savings : Save 35% electricity and 50% compressed air consumption.
3.Structural Rigidity : 15% structural enhancement by advanced FEA design.
4.Component Upgrades : New spindle and guideways system
5.Fast : 12% more daily output.
6.Quick Payback : Achieve higher returns with your investment.
CNC machines save space with a compact design.
Dimensions: L162cm × W213cm × H216cm
Made in Taiwan with 100% Commitment.
40 Years of Innovation and Excellence from Taiwan.
Your Ideal Partner for Industry 4.0 Smart Manufacturing.
Automatic system supports various robotic arms, reducing labor costs.
CNC Machine Sales & Support
BeeCNC – Built for Best Engineering, Exceptional Efficiency
-
Machining Capabilities : Compact CNC machine for drilling, tapping, and milling.
-
Wide Expandability : Flexible CNC machine center for diverse tasks.
-

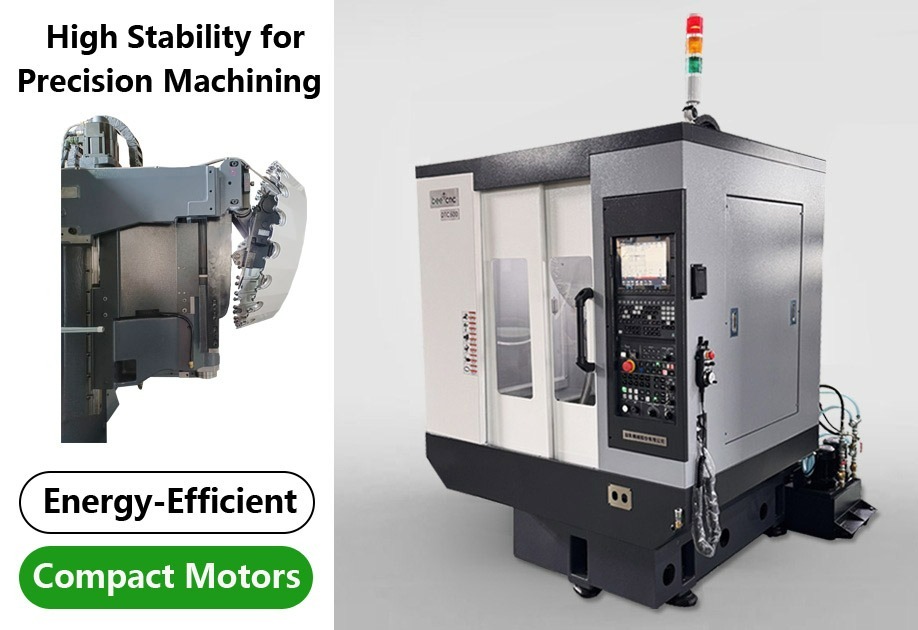

High Stability : Reliable CNC machines with proven stability.
-
Special Pricing : Special Pricing: Our affordable CNC machines offer Japanese-level quality at a competitive price, starting at $39,000 for Taiwanese models. Request a quotation today!
-
Added value : Custom jigs and fixtures for CNC integration.
-
Prompt service : Fast support for CNC machine stability.
-
Professional manufacturing : With 40 years of expertise, we specialize in Taiwan CNC machines, delivering precision and reliability to the global market.
左右滑動看表格| Specifications | Unit | DTC-500 | ||||
| Travel | X axis travel | mm | 500 | |||
| Y axis travel | mm | 400 | ||||
| Z axis travel | mm | 330 | ||||
| Distance from spindle nose to work surface | mm | 150-480 | ||||
| Worktable | Worktable size | mm | 650*400 | |||
| Max. load (Average) | kg | 300 | ||||
| Work surface height (above ground) | mm | 800 | ||||
| Spindle | Taper type | BT-30 (Direct connection) | ||||
| Speed range | rpm | 12000 / 24000 (OPT) | ||||
| Feed rate | Rapid feed rate | m / min | X、Y、Z-48m / min | |||
| Cutting feed rate | m / min | X、Y、Z-10m / min | ||||

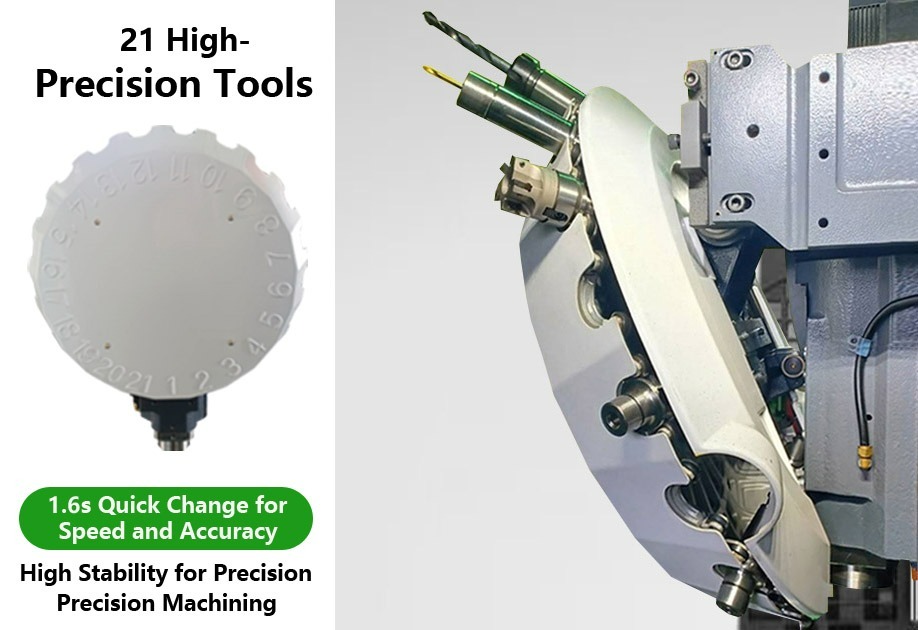

| Automatic tool changing system | Tool specifications | BT-30 | ||||
| Maximum tool diameter | mm | Ø80mm | ||||
| Number of tools | 21 | |||||
| Maximum tool length | mm | 250mm | ||||
| Tool weight | kg | 2Kg | ||||
| Spindle HP / KW | Spindle | KW | 3.7-7.5KW | |||
| X axis | HP / KW | 2.0HP / 1.5KW | ||||
| Y axis | HP / KW | 2.0HP / 1.5KW | ||||
| Z axis | HP / KW | 2.68HP / 2.0KW | ||||
| Controller System | Taiwan Delta, Japan Mitsubishi, and FANUC (three options available) | |||||
| Machine Weight | 2800kg | |||||
左右滑動看表格
CE and TS standards、ISO 14955、Machine tools Environmental evaluation of machine tools
CNC Machine Center Optional Accessories
Optional accessories are sold separately. Contact us for details.
Add 4th axis
Add a 4th axis for 360° rotation and efficient multi-surface machining.
Tool Setter
Automatic tool setters are recommended for fully automated CNC operations.
Chip Conveyor
Ideal for compact CNC machines with limited space or automated chip disposal.
Coolant Through Spindle
Necessary for deep drilling or high depth-to-width ratio machining.
Oil cooler
Essential for CNC machines operating at high speeds for extended periods.
Oil Mist Collecto
Improves air quality during pure oil-based cutting operations.
6 Key Benefits of Choosing Our CNC Machine Center
Best Choice for CNC Machine Solutions
Welcome to Test the Machine.
Visit our factory to test CNC machines. Schedule your appointment today.Address: 412 No. 115 Kung Yei TIRD, Dali IDN ZONE, Dali District, Taichung City, Taiwan, R.O.C.
Proven Operational Stability
Proven stability and durability with over 70 units sold since 2019.
Service Techs Support
Our team of factory-trained and certified technicians possesses extensive local manufacturing expertise and is ready to provide you with top-notch CNC machines service. Feel free to contact us at +886-4-24930678 or reach out via Facebook Messenger or WhatsApp.
Guaranteed Spare Parts Availability
Ample spare parts inventory ensures seamless maintenance and replacements.
2-Year Warranty Assurance
All CNC machines include a 2-year warranty for stable operation.
Exceptional Cost-Performance Ratio
We designed our CNC machines based on models from leading Japanese manufacturers, in collaboration with the Precision Machinery Research Development Center. Not only have we reinforced the structure, but we have also optimized the speed. And really, who wouldn’t want a more affordable, high-value investment? We guarantee fast ROI and long-term profitability—your smartest investment for a thriving business.
Invest in the Future, Make Better Choices
Don't let cumbersome processes slow down your production efficiency. Let us help you enhance your machining competitiveness.
