Spindle Type-Inside Spindle : MT4
Spindle Type-For Chuck : MT4
Working Ability-Steel (S45C) : 15-35
Spindle Travel : 153mm
Motor : 3HP-4*8P
Spindle Speed RPM (Steps) :
50HZ : 127-961
60HZ : 150-1140
Weight : 492kg
-
Stroke : Automatic
Spindle Type-lnside Spindle : MT4
Spindle Type-For Chuck : MT4
Working Ability-Steel (S45C) : 15-35
Spindle Travel : 153mm
Motor : 3HP-4*8P
Spindle Speed RPM (Steps)-50HZ : 127-961(8)
Spindle Speed RPM (Steps)-60HZ : 150-1140(8)
Weight : 492kg
Friendly Reminder :
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling.
2. Customized spindle speed might be required for particular materials or drilling sizes.
-
SpecificationsStroke : Automatic
Spindle Type-lnside Spindle : MT4
Spindle Type-For Chuck : MT4
Working Ability-Steel (S45C) : 15-35
Spindle Travel : 153mm
Motor : 3HP-4*8P
Spindle Speed RPM (Steps)-50HZ : 127-961(8)
Spindle Speed RPM (Steps)-60HZ : 150-1140(8)
Weight : 492kg
Friendly Reminder :
1. The practical working abilities are very related to sharpness on drill bit, good lubrication and suitable cooling.
2. Customized spindle speed might be required for particular materials or drilling sizes.

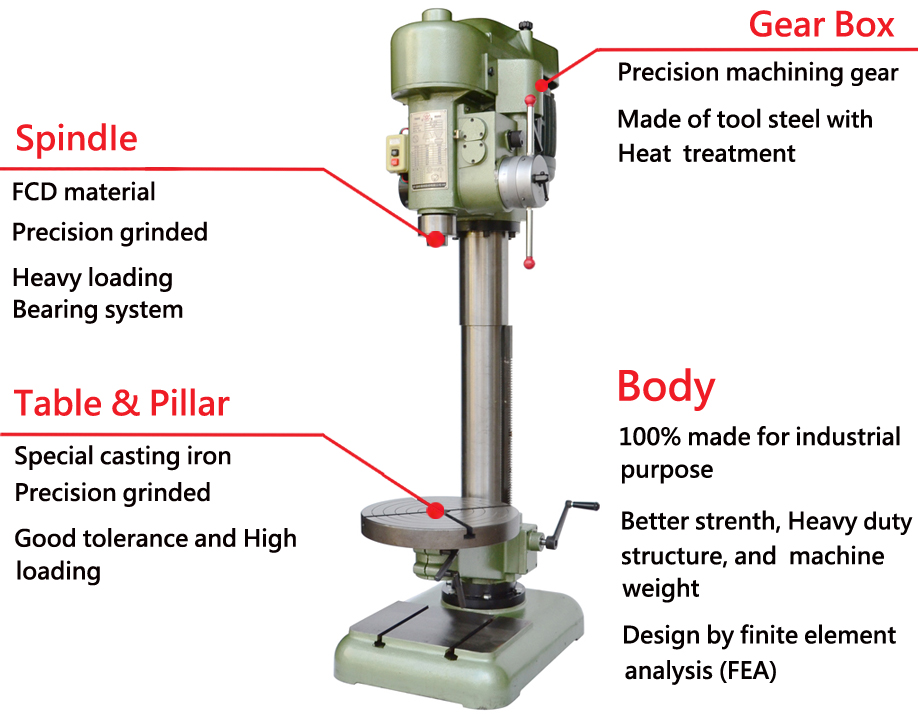

Combining expertise and craftsmanship, it showcases the artisanal quality in drill press manufacturing.
- 100% Made in Taiwan, committed to delivering the best drill press to our customers.
- The drilling machine is meticulously crafted with exceptional workmanship and superior precision.
- Our drilling machines are built for durability and superior performance.
- HD-350 has 6 steps of rpm setting, and is designed with a easy setting system for arranging them.
- In consideration of easier maintenance on the production line, the machine is designed and assembled in groups of parts. Users do not need to remove the entire drilling machine from the line, but only a small group of parts for repair.
- The Horng Dar brand HD-350 bench drill press, manufactured by BEECNC, is designed to meet the demand for 35mm drilling. The machine features an enhanced body structure to increase drilling power. Its performance is precise and stable, effectively reducing damage to the drill bits.
Recommended Drilling Machines
Automatic Drilling Machine HD-120
16mm Gear Type Semi-Automatic Feed
Stroke : Automatic
Spindle Type-Inside Spindle : MT2
Spindle Type-For Chuck : JT6
Working Ability-Steel (S45C) : 3-16
Spindle Travel : 93mm
Motor : 1HP-4P
Spindle Speed RPM (Steps)-50HZ : 466-1675
Spindle Speed RPM (Steps)-60HZ : 560-2010
Weight : 102kg
Automatic Drilling Machine HD-250
25mm Gear Type Semi-Automatic Feed
Stroke : Automatic
Spindle Type-Inside Spindle : MT3
Spindle Type-For Chuck : JT6
Working Ability-Steel (S45C) : 5-25
Spindle Travel 133mm
Motor : 2HP-6P
Spindle Speed RPM (Steps)-50HZ : 200-1600
Spindle Speed RPM (Steps)-60HZ : 210-1700
Weight :206kg
